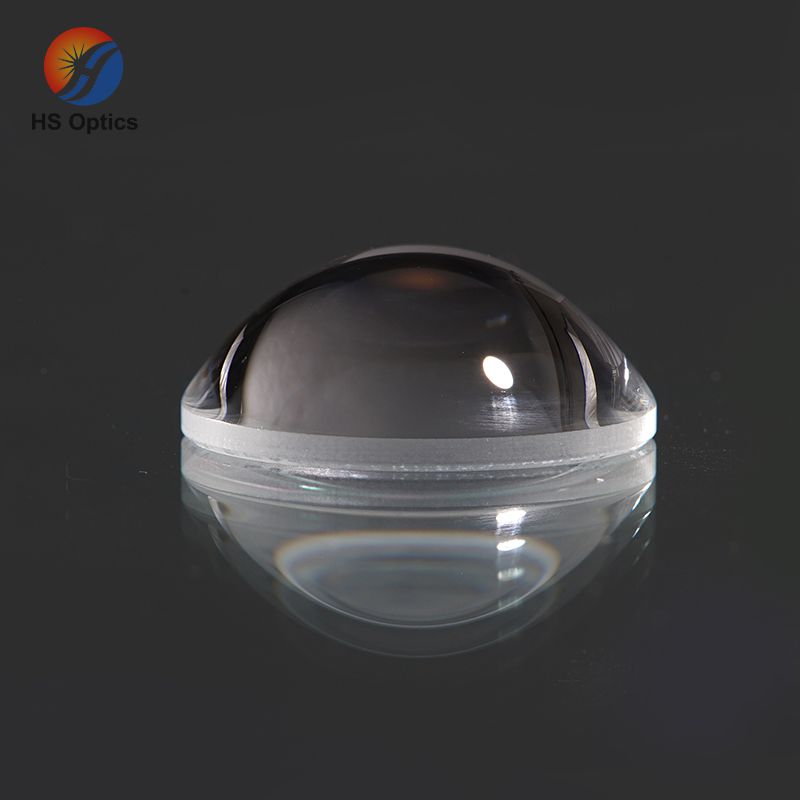

The double convex lens/mirror is symmetrical across both its horizontal and vertical axis. Each of the lens's two faces can be thought of as originally being part of a sphere. The fact that a double convex lens/mirror is thicker across its middle is an indicator that it will converge rays of light that travel parallel to its principal axis. A double convex lens/mirror is a converging lens. A double concave lens/mirror is also symmetrical across both its horizontal and vertical axis.
Product parameter
| Materials | Optical glass, quartz, infrared materials (calcium fluoride, zinc selenide, silicon, germanium) |
| Diameter Range | φ1-450mm |
| Contour tolerance | 0/-0.1 |
| Thickness Tolerance | ±0.03 |
| Surface Quality | 20-10 |
| Surface Flatness | N≤1, △N≤0.2 |
| Center | 15 seconds |
| Chamfer | ≤0.1 |
| Clear Aperture | > 90% |
| Coating | According to customer requirements |
