What Are Cylinder Lenses?

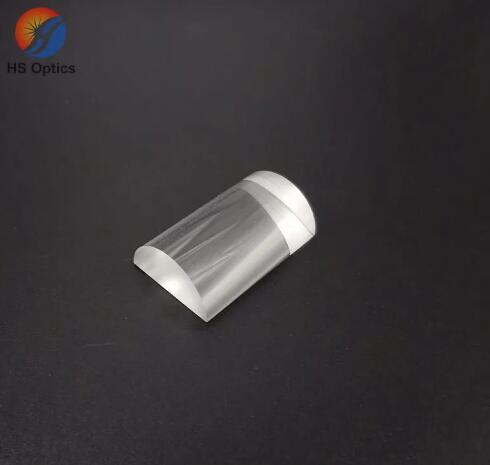

Cylinder lenses are a type of lens that have differing radii in the X and Y axes, causing the lens to have a cylindrical or semi-cylindrical shape.

Cylinder lenses are an essential component in various optical systems, designed to focus or expand light in a single dimension. Unlike spherical lenses, which focus light in all directions, cylinder lenses have a unique geometry that allows them to manipulate light selectively along one axis. This capability makes them invaluable in fields such as laser systems, imaging, and optical communication. In this article, we will explore what cylinder lenses are, how they work, their types, and their applications, providing insights for procurement professionals seeking high-quality optical solutions.

Understanding the Basics of Cylinder Lenses

A cylinder lens has at least one surface that is cylindrical, meaning it curves along one axis but remains flat along the perpendicular axis. This design allows the lens to either converge or diverge light in a single direction, creating a line focus rather than a point focus.

Key Characteristics of Cylinder Lenses:

Shape: Either plano-convex, plano-concave, or biconvex/biconcave.

Functionality: Focuses light into a line or expands a laser beam into a fan shape.

Material: Typically made from high-quality optical glass, quartz, or polymers. Coatings can be applied to enhance performance in specific wavelengths.

Types of Cylinder Lenses

Cylinder lenses are categorized based on their shape and functionality:

1. Plano-Convex Cylinder Lenses

Shape: Flat on one side, convex on the other.

Functionality: Converges parallel light into a line focus.

Applications: Used in laser scanning systems, bar code readers, and optical metrology.

2. Plano-Concave Cylinder Lenses

Shape: Flat on one side, concave on the other.

Functionality: Diverges collimated light into a wider beam.

Applications: Beam shaping, laser projection systems, and optical processing.

3. Biconvex and Biconcave Cylinder Lenses

Shape: Curved on both sides, either convex or concave.

Functionality: Provides stronger convergence or divergence compared to plano versions.

Applications: Complex optical systems requiring precise light manipulation.

4. Custom Cylinder Lenses

Shape: Tailored to specific dimensions and coatings.

Functionality: Designed for unique industrial or research applications.

Applications: Advanced imaging, spectrometry, and aerospace optics.

How Cylinder Lenses Work

The optical properties of cylinder lenses are dictated by their geometry. The curvature along one axis bends light, while the flat surface leaves the perpendicular axis unaffected. This selective focusing capability enables applications where precise control of light direction and shape is required.

For example, in laser systems, a plano-convex cylinder lens can transform a collimated beam into a line focus, making it ideal for cutting or welding. Conversely, a plano-concave lens can expand a laser beam into a sheet for scanning or projection purposes.

Applications of Cylinder Lenses

Cylinder lenses are integral to numerous industries and technologies:

1. Laser Systems

Role: Beam shaping and focusing.

Applications: Laser cutting, welding, and medical procedures like LASIK.

2. Optical Imaging

Role: Line scanning and astigmatism correction.

Applications: Bar code readers, spectrometers, and high-resolution imaging systems.

3. Telecommunications

Role: Collimation and focusing of laser beams in fiber optic systems.

Applications: Fiber coupling, signal modulation, and data transmission.

4. Medical Devices

Role: Precision light delivery.

Applications: Endoscopy, laser therapy, and ophthalmology.

5. Aerospace and Defense

Role: Light manipulation in harsh environments.

Applications: Targeting systems, optical sensors, and surveillance equipment.

Advantages of Cylinder Lenses

High Precision: Enables accurate control of light in a single dimension.

Versatility: Suitable for diverse applications, from industrial to medical.

Customization: Can be tailored with specific shapes, materials, and coatings.

Efficiency: Enhances the performance of optical systems by reducing energy loss.

Market Trends and Industry Insights

The global optical lens market, which includes cylinder lenses, is expected to grow significantly, driven by advancements in laser systems, telecommunications, and medical technologies. According to industry reports, the market is projected to reach $24 billion by 2030, with a CAGR of 7.5%.

Key growth factors include:

Increasing adoption of laser technologies in manufacturing.

Rising demand for high-speed data transmission in telecommunications.

Expansion of medical imaging and diagnostic applications.

Choosing the Right Cylinder Lens Supplier

When sourcing cylinder lenses, it’s crucial to partner with a reliable manufacturer that offers:

High-Quality Materials: Optical-grade glass or quartz with minimal defects.

Precision Manufacturing: Advanced polishing and coating techniques.

Customization Options: Tailored solutions for specific industry needs.

Compliance: Adherence to international quality standards like ISO 9001.

>> Know about Hongsheng

Why Choose Our Cylinder Lenses?

As a leading OEM/ODM supplier of optical components, we provide:

Wide Product Range: From standard to custom-designed cylinder lenses.

Advanced Coatings: Anti-reflective, UV, and IR coatings for enhanced performance.

Competitive Pricing: High-quality lenses at industry-leading rates.

Technical Support: Expert guidance in selecting the right lens for your application.

Conclusion

Cylinder lenses are a cornerstone of modern optical systems, enabling precise light control across industries. Understanding their types, functionality, and applications helps businesses leverage their full potential. With the global demand for advanced optical components on the rise, now is the time to invest in high-quality cylinder lenses to enhance your product offerings.

Contact us today to learn more about our cylinder lens solutions and discover how we can meet your specific requirements. Let’s shape the future of optics together!
