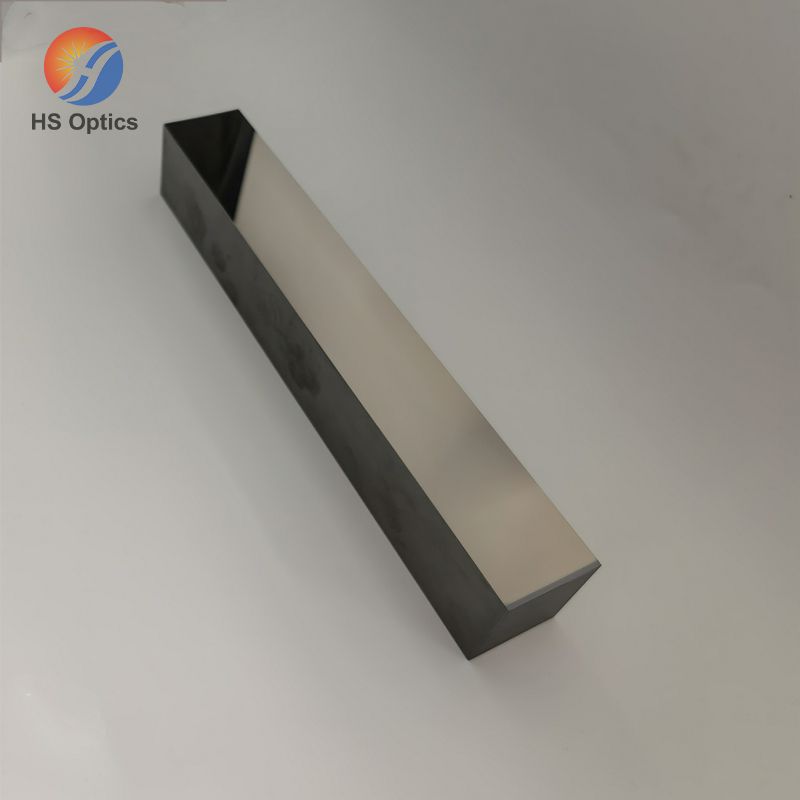

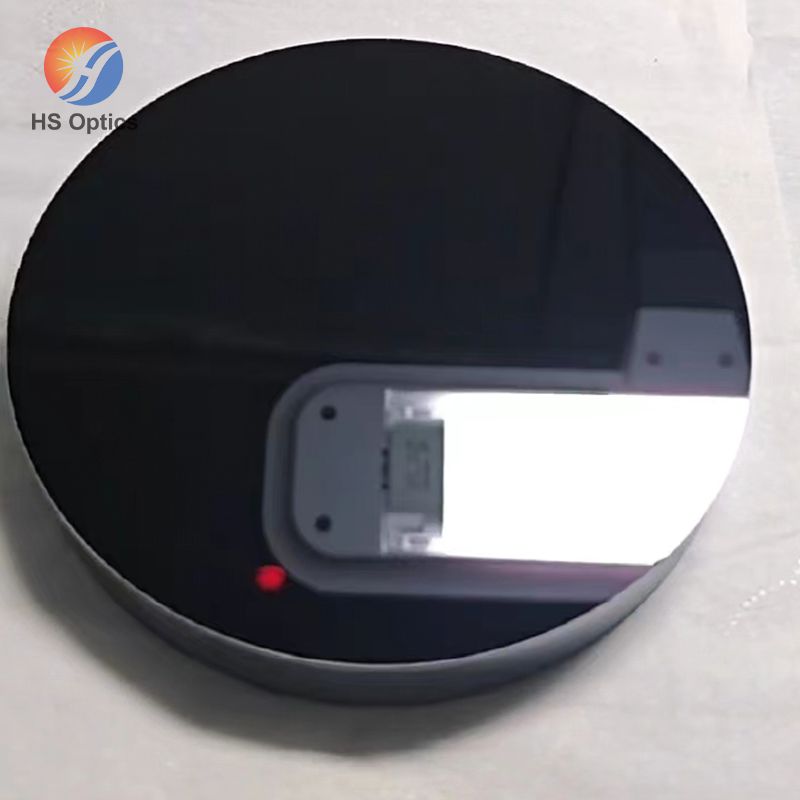

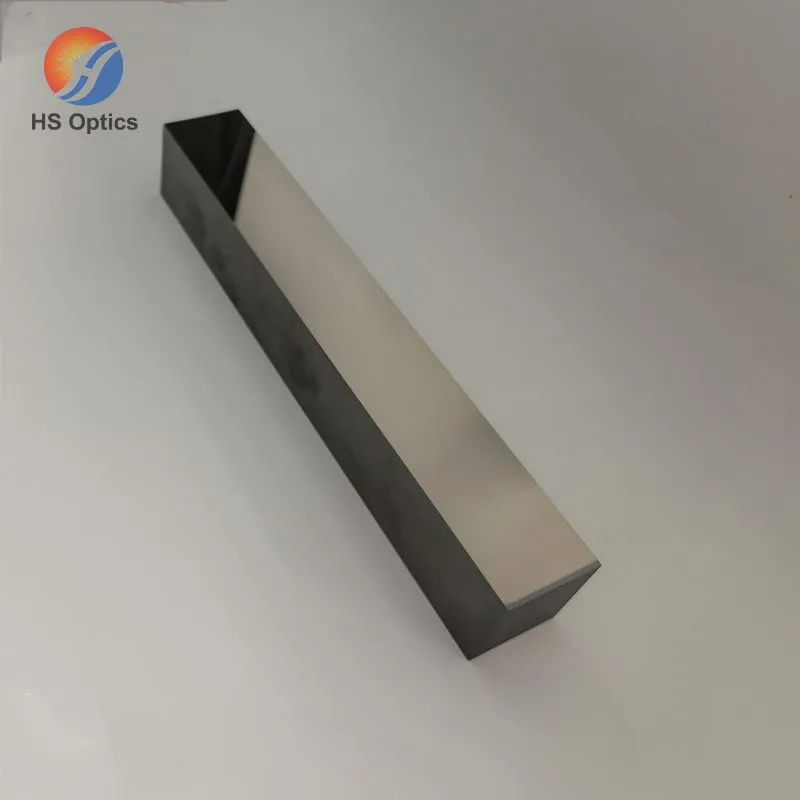

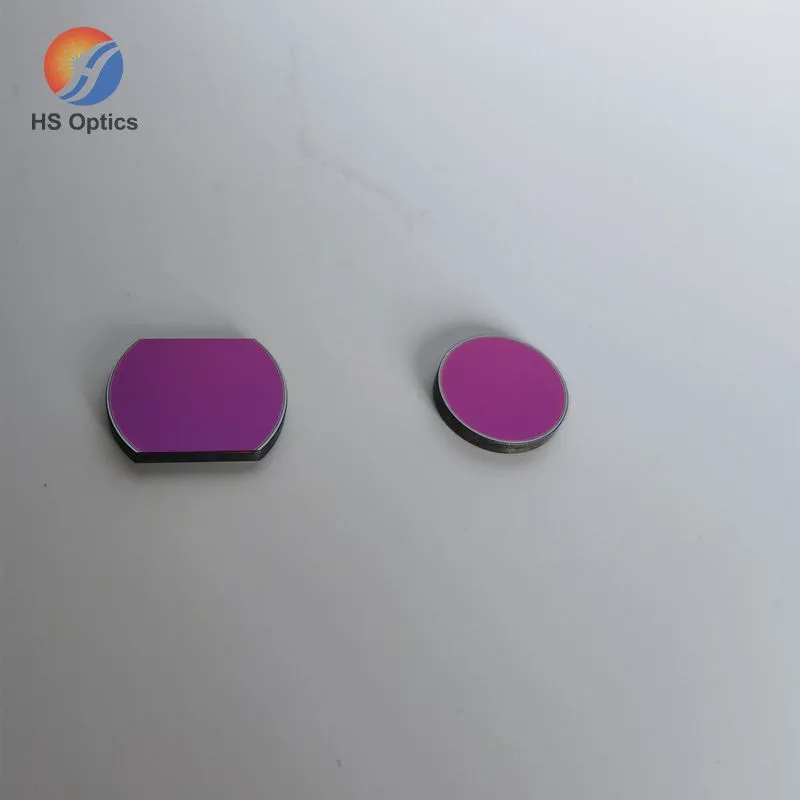

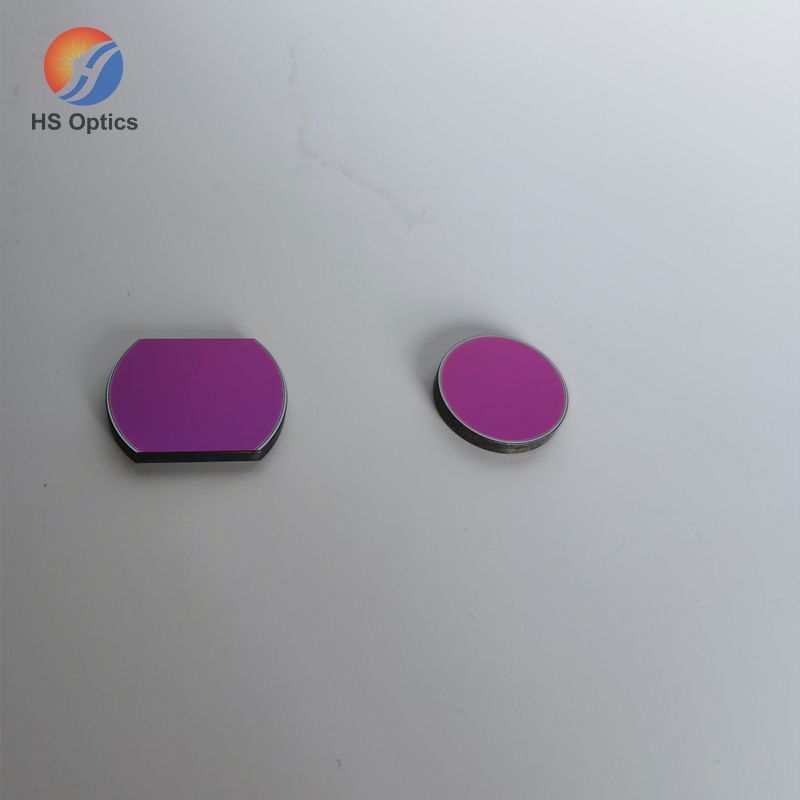

Monocrystalline Silicon Lenses is an infrared optical material with excellent comprehensive cost performance. Optical grade Czochralski silicon (OCZ-Si) as a transmission grade material is widely used in the mid-infrared (3-5um) band, and the infrared transmittance exceeds 50%. Zone-melted monocrystalline silicon can be used in a wider band (1-14um), and high-purity zone-melted monocrystalline silicon (HPFZ-Si) can even be used in the far-infrared band (greater than 30um). The choice of silicon type depends on the wavelength range, component thickness and specific application.
Product parameter
| Materials | Optical glass, quartz, infrared materials (calcium fluoride, zinc selenide, silicon, germanium) |
| Diameter Range | φ1-450mm |
| Contour tolerance | 0/-0.1 |
| Thickness Tolerance | ±0.03 |
| Surface Quality | 20-10 |
| Surface Flatness | N≤1, △N≤0.2 |
| Center | 15 seconds |
| Chamfer | ≤0.1 |
| Clear Aperture | > 90% |
| Coating | According to customer requirements |
